Selection parameters of Pop-up Transfer


Three-in-one high-efficiency model


Technical Parameters(three-in-one high-efficiency model)
Specifications Model conveying size(mm) Dimensions(mm) Adapt to the width of the conveyor line
L1 W1 L2 W2 H
A400 758 396 715 380 170 400-450mm
B500 758 496 715 480 170 500-550mm
C600 758 596 715 580 170 600-650mm
D700 758 696 715 680 170 700-850mm
Conveying speed ≤60 m/min
Cargo size ≥250x250 mm
Rated load ≤50 kg
Conveying efficiency ≤1800 products/hour
Conveying method Roller Drive (2 pieces)
Lifting method Roller Drive (1 piece)
Communication signal PNP /NPN
Equipment material Galvanized /Stainless Steel


Features:
Wide adaptability, easy installation, strong controllability, high safety, maintenance-free and low failure rate.

Pop-up Transfer is a transfer machine with extremely high cost performance.

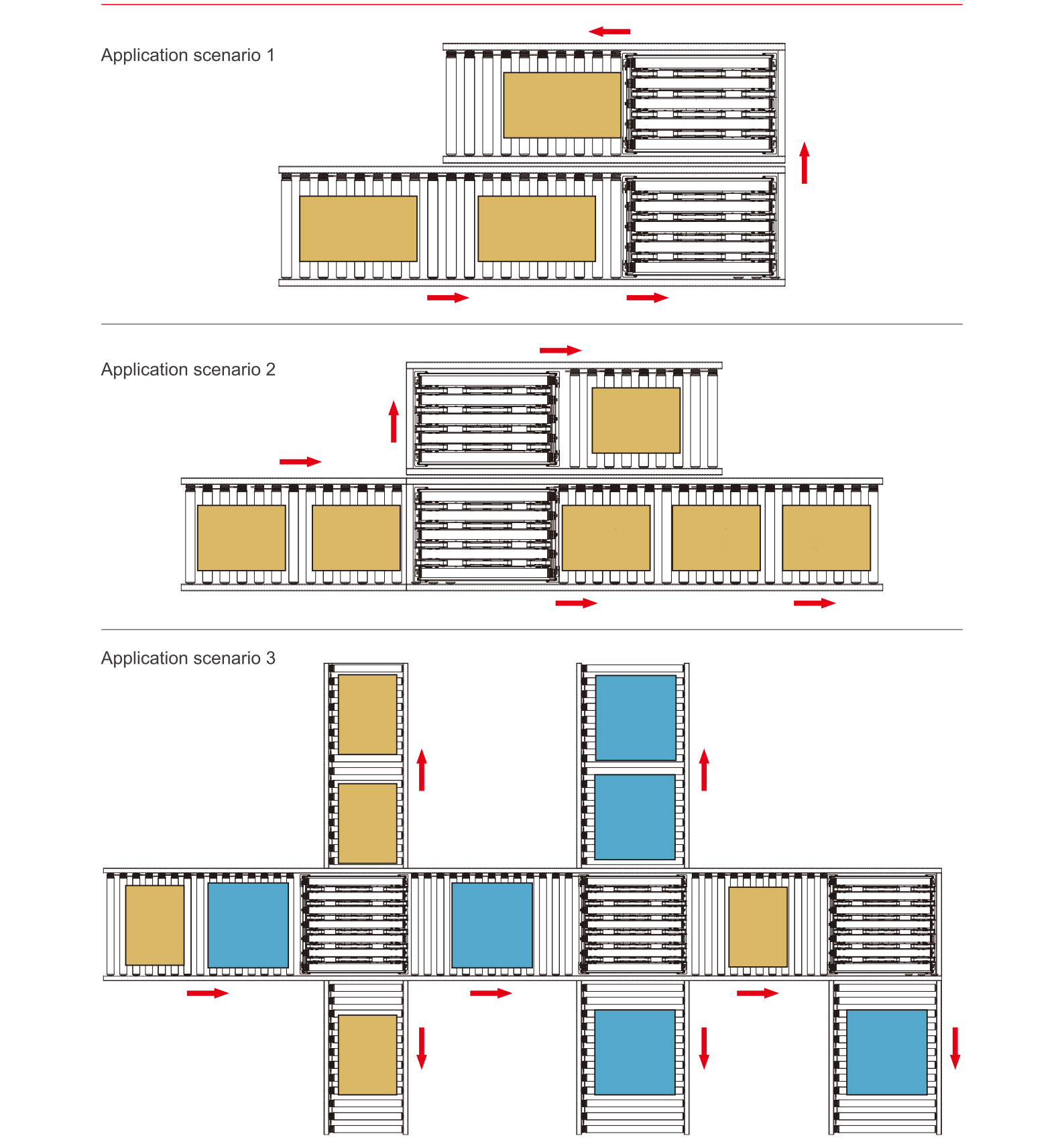

Pop-up Transfer can reaize gentle transportation of goods and applied to various sorting and transfering fields. Throughmodular and standardized design, it can be perfectly combined with the conveyor lines for most customers' sites.

Pop-up Transfer is designed to provide a low-impac, high-performance, non-damaging sleering transportalion for goods. has high fatiawe resistance and long service life, making it to be the best rioh-anale steering eauipment for small and medium-sizedsorting sites.

Two-in-one simple model


Technical Parameters(two-in-one high-efficiency model)
Specifications Model conveying size(mm) Dimensions(mm) Adapt to the width of the conveyor line
L1 W1 L2 W2 H
S500 394 431 590 565 237 500mm
S600 394 531 590 665 237 600mm
S700 394 631 590 765 237 700mm
S800 394 731 590 865 237 800mm
Conveying speed ≤60 m/min
Cargo size ≥300x300 mm
Rated load ≤50 kg
Conveying efficiency ≤1200 products/hour
Conveying method Roller Drive (2 pieces)
Lifting method Roller Drive (1 piece)
Communication signal PNP /NPN
Equipment material Galvanized /Stainless Steel
