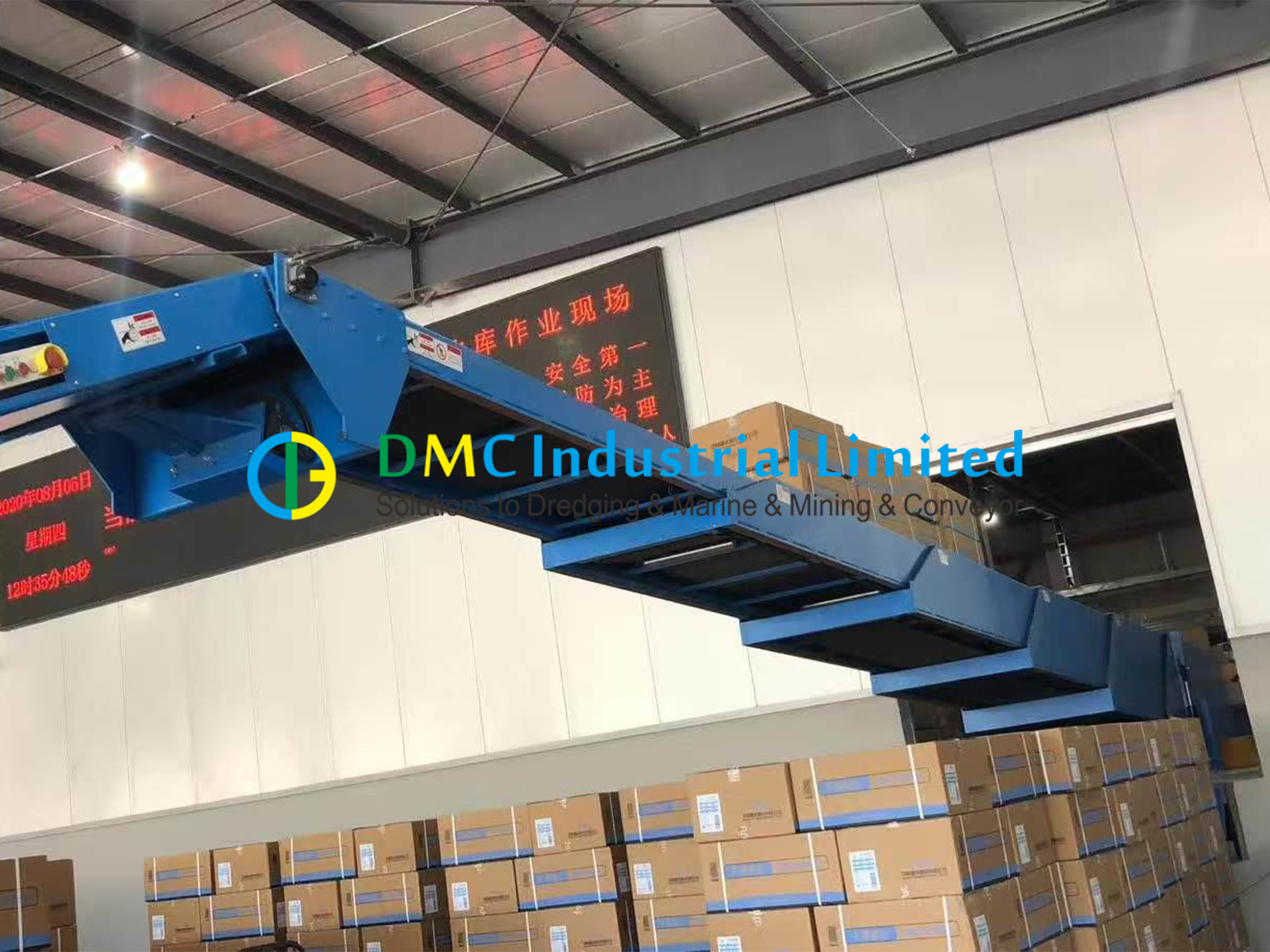

Telescopic Belt Conveyor

*Equipment type: fixed, movable

*Equipment function: easy loading and unloading

*Suitable for:6.8m,9.6m, 20/40ft container, 13m, 17.5m trucks

*Loading and unloading efficiency:1000-2000 products/hour

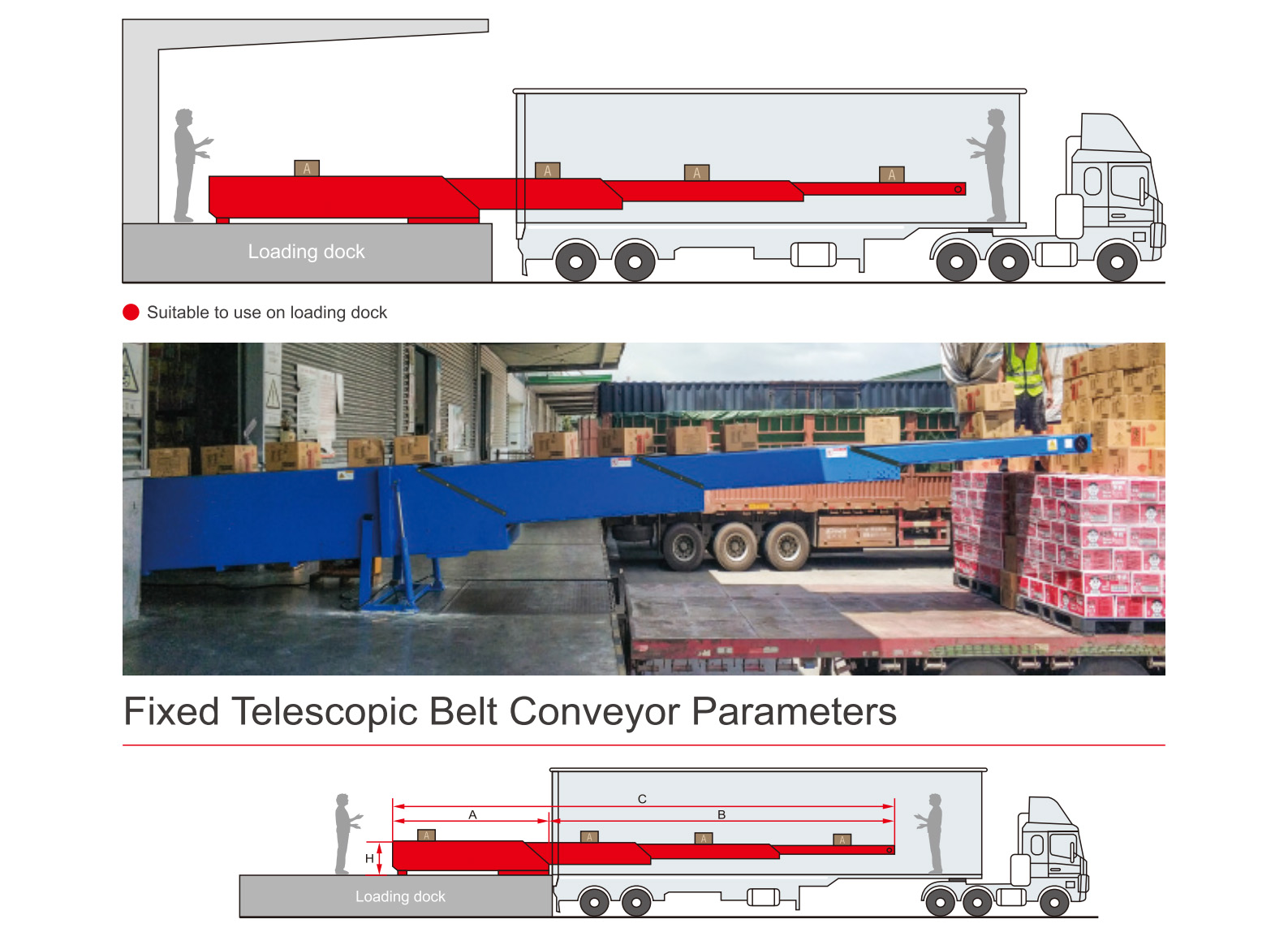

Selection parameters of Fixed Telescopic Belt Conveyor

Model	Sections	Total length C(mm)	Fixed length A(mm)	Extension length B(mm)	Heigth(mm)	Belt width (mm)	Optional functions
A3-6+8	3 Sections	14000	6000	8000	800	600/800/1000/1200	·Hydraulic lifting ·Standing platform ·Drop snoot ·Swing arm ·Counter ·Anti-dropping ·Wireless remote ·On-ine control ·Air-conditioning device
A3-7+9.5	3 Sections	16500	7000	9500	800	600/800/1000/1200
A4-5+10	4 Sections	15000	5000	10000	900	600/800/1000/1200
A4-6+12		18000	6000	12000	900	600/800/1000/1200
A4-7+14		21000	7000	14000	900	600/800/1000/1200
A4-8+16		24000	8000	16000	900	600/800/1000/1200
A5-6+15	5 Sections	21000	6000	15000	1150	600/800/1000/1200
A5-7+16	5 Sections	23000	7000	16000	1150	600/800/1000/1200
A6-4.5+13	6 Sections	17500	4500	13000	1200	600/800/1000
A6-5+16	6 Sections	21000	5000	16000	1200	600/800/1000

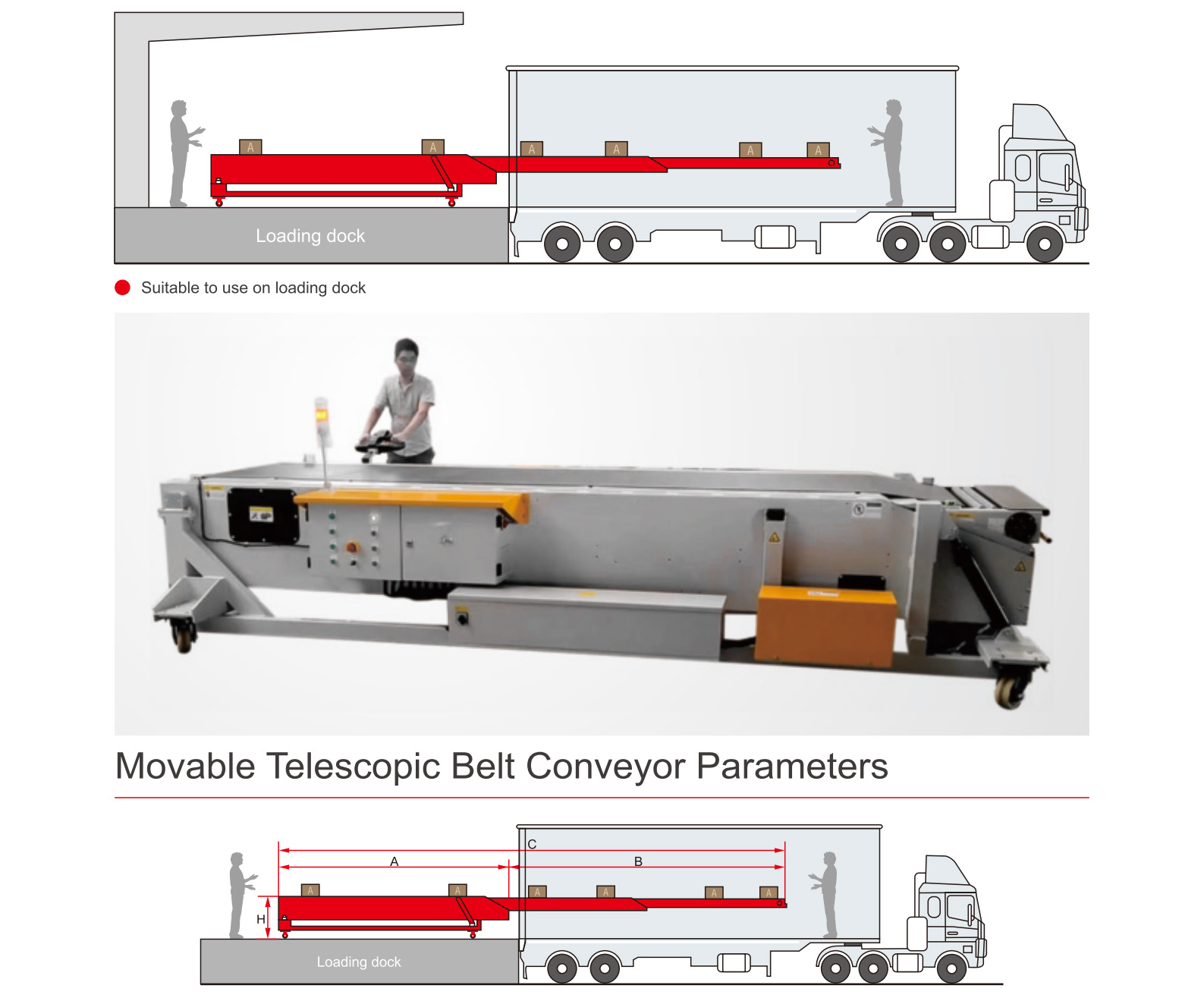

Movable Type Telescopic Belt Conveyor Selection

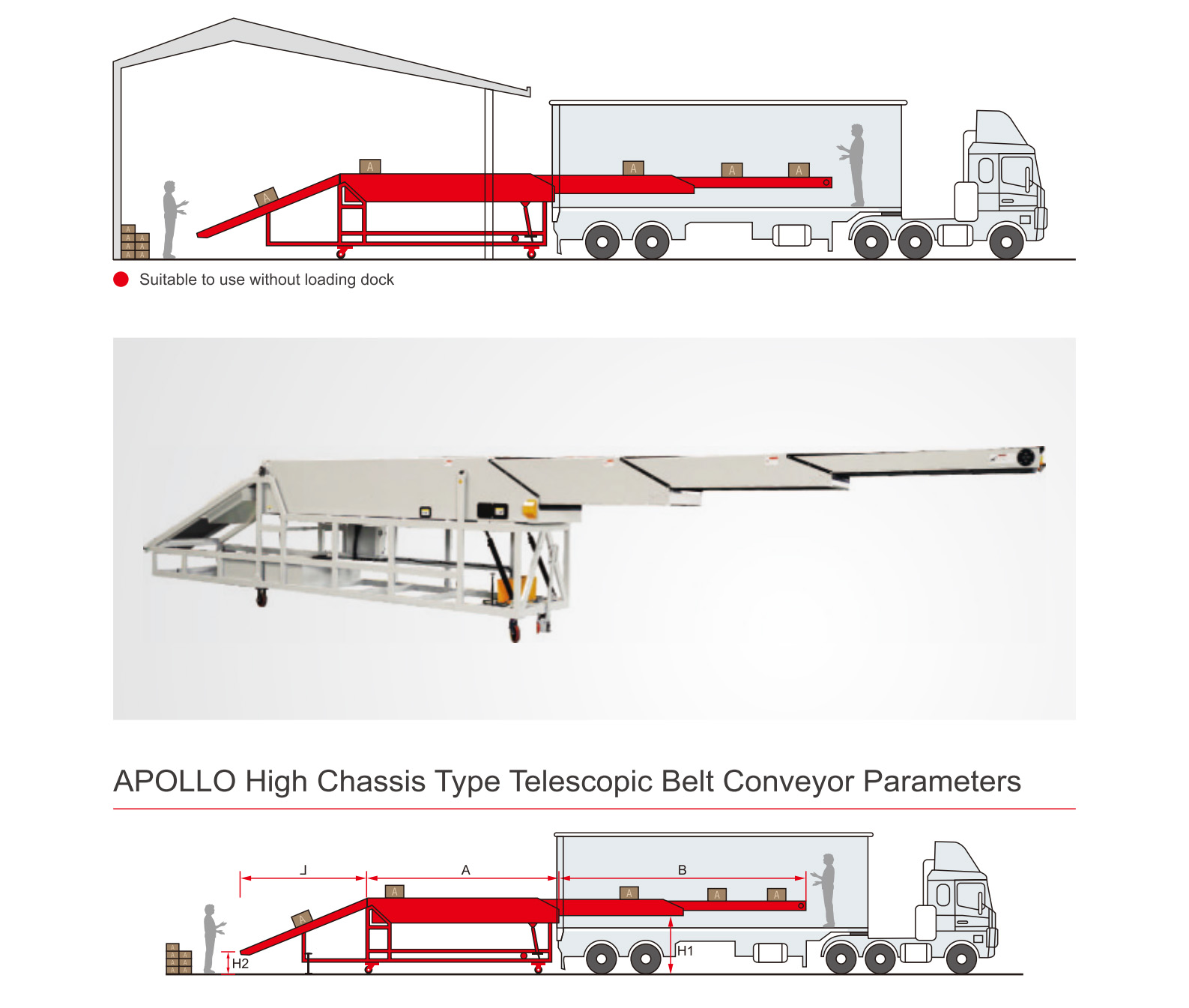

High Chassis TypeTelescopic Belt Conveyor Selection (without loading dock)
